Mobile Loading Dock Ramp—HRHS-A—10TON

HRHS-A Mobile Loading Dock Ramp | Enhanced Traction & Safety with Hybrid Deck

Engineered for Superior Grip and Operational Flexibility. The HRHS-A Mobile Loading Dock Ramp is a specialized variant of our trusted HRHS series, designed to deliver enhanced safety and performance in demanding conditions. It addresses the critical need for maximum forklift tire traction while offering unmatched setup and maintenance flexibility.

This ramp features a unique hybrid deck system that combines a steel grating surface with a continuous 300mm wide checkered plate strip down the center, creating an optimal path for tire grip. Further upgrades include removable front and rear approach plates for easy configuration and service, and a lower reinforcement guardrail for superior cargo and personnel safety. Built with No. 18 I-beams, it offers an optimized balance of strength and weight for efficient daily use.

Product Highlights & Key Upgrades

• Hybrid Deck for Maximum Traction & Drainage: Features a primary steel grating deck with a solid 300mm checkered plate center strip. This design provides a high-traction pathway for forklift drive tires while maintaining excellent side drainage for water, snow, and debris.

• Removable & Interchangeable Approach Plates: The front and rear plates are not welded on. This allows for easy replacement if worn, customization for different truck types, and a more compact profile during transport or storage.

• Enhanced Safety with Lower Guardrail: Includes an integrated lower reinforcement guardrail. This critical feature prevents pallets, tools, or debris from sliding under the main deck, enhancing worksite safety and protecting the ramp’s structure.

• Optimized Strength-to-Weight Ratio: Constructed with No. 18 I-beams as the main girders, providing robust structural support for dynamic loads while contributing to a lighter overall unit for easier repositioning.

• Reliable Hydraulic Operation: Equipped with a smooth manual hydraulic system for effortless, precise height adjustment to match various truck beds and dock heights.

Core Features & Specifications

1. Structural Design & Safety

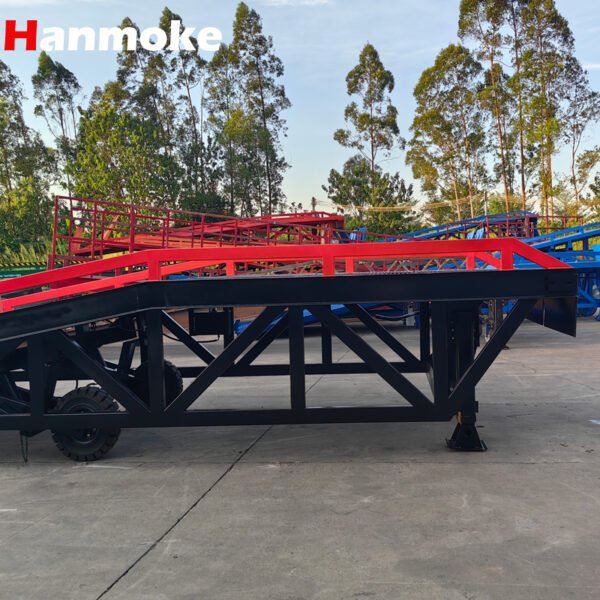

• Main Frame: Fabricated with No. 18 I-beam main girders and a rectangular tube support structure.

• Safety System: Standard full-length side guardrails plus the integrated lower reinforcement guardrail.

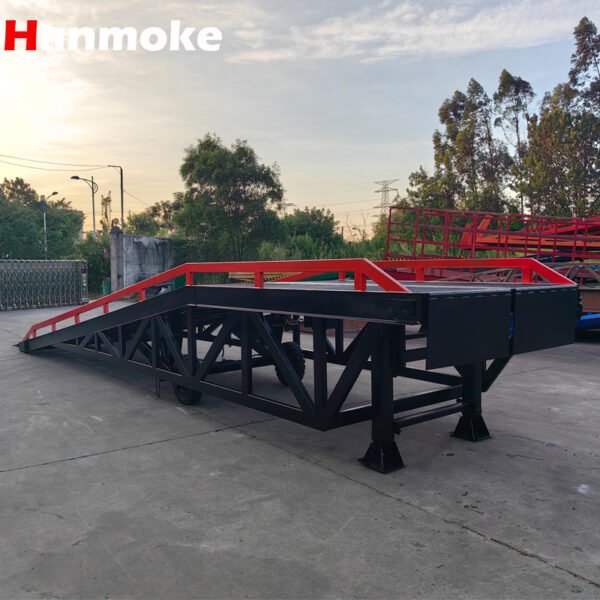

• Stabilization: Heavy-duty, lockable landing leg for secure operation.

2. Innovative Deck & Interface System

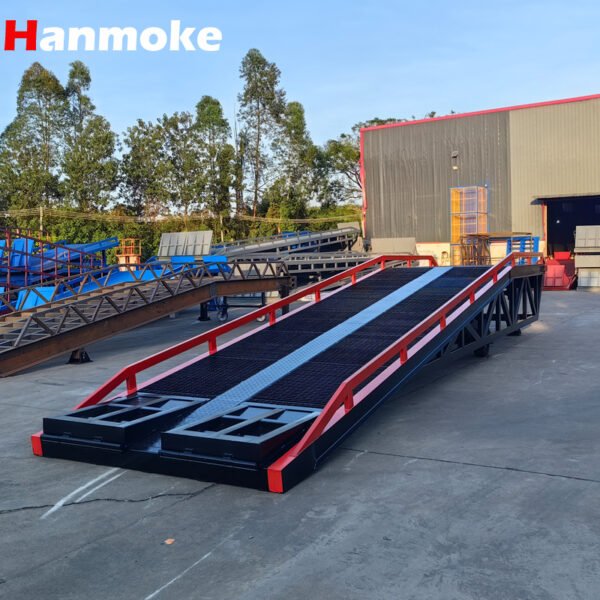

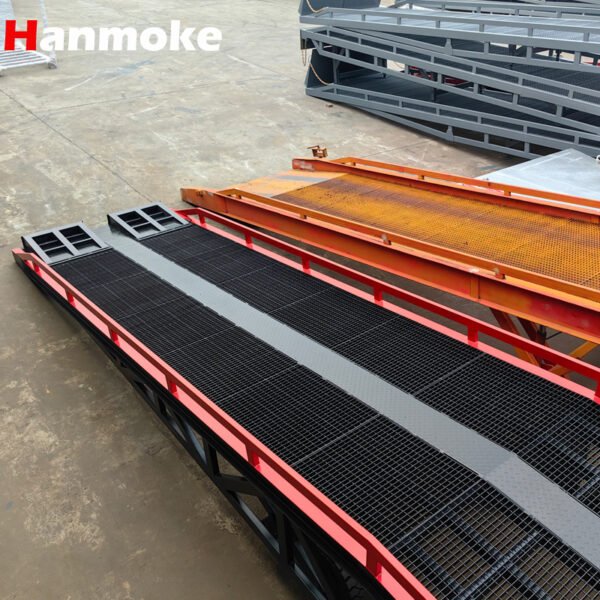

• Deck Composition: Hybrid design of standard steel grating with a 300mm wide solid checkered plate center lane.

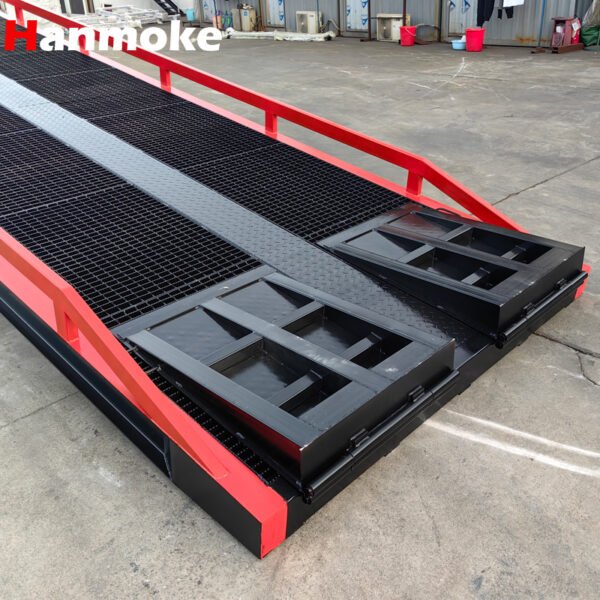

• End Plates: Removable and reversible steel approach/departure plates, secured with heavy-duty pins for safety and ease of use.

• Surface Benefits: The center checkered plate ensures positive tire bite; the surrounding grating allows for all-weather drainage.

3. Performance & Handling

• Lift Mechanism: Manual hydraulic pump system.

• Load Capacity: Designed for dynamic loads typical of the HRHS series range (e.g., 10-20 tons, depending on configuration).

• Mobility: Centralized solid rubber tires enable easy movement by forklift around the yard or facility.

Why Choose the HRHS-A Model?

The HRHS-A is the right choice when your operation needs more than a standard ramp. It is ideal for:

• Facilities with Slippery Conditions: The center traction strip is invaluable in wet, icy, or oily environments.

• Operations Requiring Easy Maintenance: Removable end plates drastically simplify repair and part replacement, minimizing downtime.

• Sites with High Safety Standards: The lower guardrail adds a vital layer of protection against load shift and roll-under hazards.

• Users Seeking a Lightweight Yet Sturdy Performer: The No. 18 I-beam construction offers a great blend of durability and easier handling compared to larger beams.

Ideal Applications

• Food & Beverage Warehouses (where floors may be wet)

• Manufacturing plants with occasional fluid spills

• Logistics yards requiring versatile ramp configurations

• Rental companies seeking durable, service-friendly equipment

SEO Keywords: HRHS-A Mobile Loading Ramp, Hybrid Deck Yard Ramp, Checkered Plate Center Ramp, Removable Approach Plates, Lower Safety Guardrail Ramp, No. 18 I-Beam Ramp, Enhanced Traction Loading Dock.

Configure your enhanced loading solution. Contact us for detailed specifications and pricing on the versatile HRHS-A Mobile Loading Dock Ramp.
