Portable Dock Ramp—HREI—20TON

HREI Series Portable Dock Ramp | Complete Product Profile

Product Name: HREI Series Integrated Portable Dock Ramp & Leveler
Core Tagline: The World’s First Truly Effortless-to-Move, Industrial-Strength Mobile Dock.

1. Product Overview & Design Philosophy
The HREI Series is engineered to obliterate the traditional trade-off between portability and performance. It integrates a high-performance, fixed-style hydraulic dock leveler onto an intelligently designed mobile chassis. The result is a “Dock-in-a-Box” that delivers pit-leveler performance with unprecedented relocation ease, centered around our patented ‘Lift & Roll’ mobility system.

2. Revolutionary ‘Lift & Roll’ Mobility System

• Process: User lifts the dedicated tail handle → Internal mechanism raises the entire front deck and bridge plate automatically → Unit balances on large central wheels → Effortless manual push/pull to new location.

• Time-to-Move: < 30 seconds.

• Labor Required: 1 person, minimal physical effort.

• Tools Required: None.

• Comparative Advantage: Eliminates the need for forklifts, levers, dragging, or multi-person teams to reposition heavy ramps.

3. Dual-Mode Deployment Flexibility

• Mode A: Fixed, Semi-Permanent Dock.

  • Method: Secure directly to a concrete slab using provided heavy-duty expansion anchor bolts.

  • Performance: Functions identically to a standard, flush-mount fixed dock leveler with zero movement.

• Mode B: Fully Mobile, Go-Anywhere Dock.

  • Method: Keep unit freestanding. Use the ‘Lift & Roll’ system to deploy, relocate, or store.

  • Performance: Create a instant, high-capacity loading point on any firm, level surface.

4. Robust Construction & Key Specifications

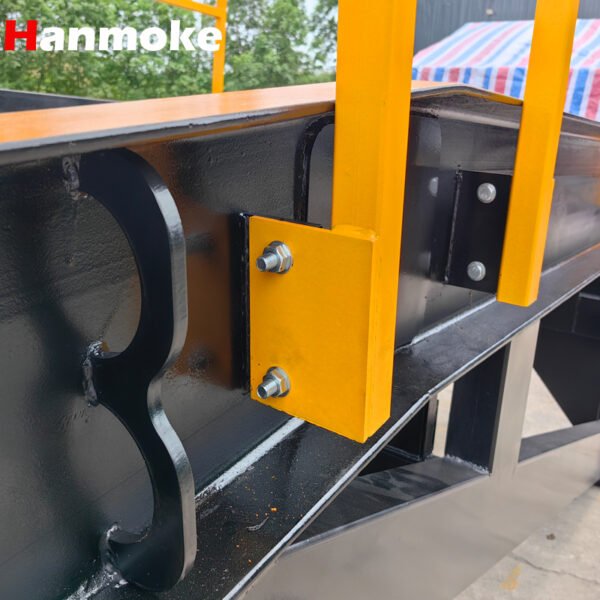

• Frame & Build: Fabricated from high-tensile steel with reinforced critical stress points. Designed for impact resistance and extreme durability in 24/7 industrial environments.

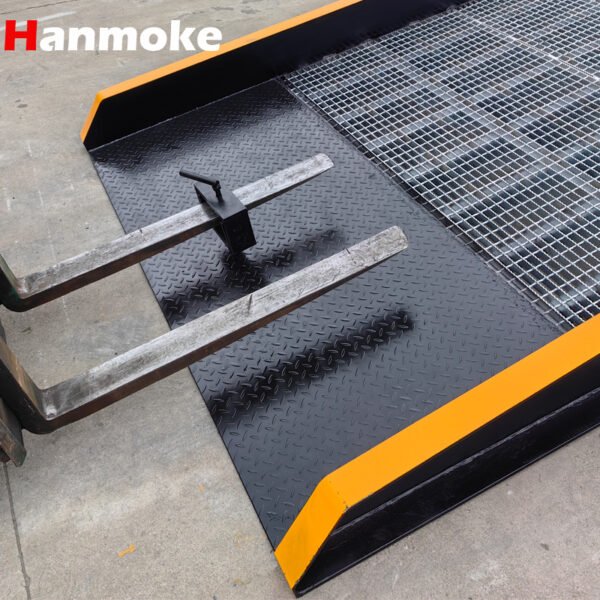

• Decking: Premium steel grating with a raised anti-slip pattern for maximum traction and all-weather drainage.

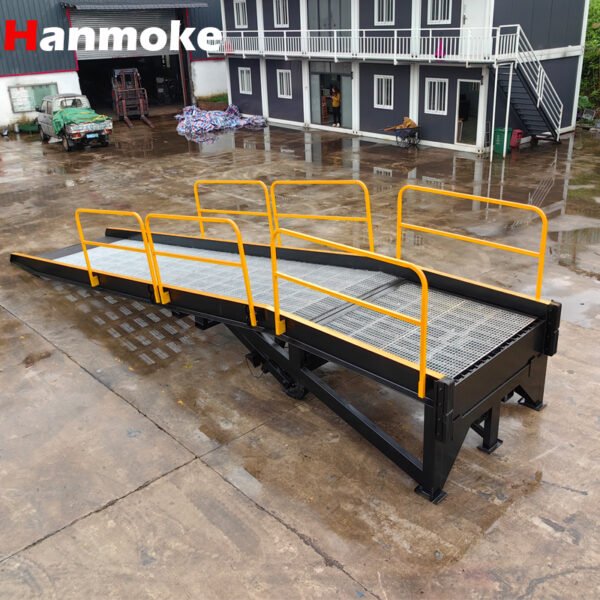

• Safety Guardrails: Full-perimeter 1.2-meter (approx. 4 ft) high guardrail system with mid-rails, compliant with occupational safety standards for elevated work platforms.

• Bridge Plate (Leveler): Heavy-duty, hinged lip design with secure truck-to-dock sealing. Hydraulically actuated for smooth operation.

• Wheels & Chassis: Features large-diameter, high-load polyurethane or solid rubber wheels on a balanced axle for smooth transport over concrete and asphalt.

5. Power System Options (For Bridge Plate Lifting)

• Electric-Hydraulic Power Unit: Choose the voltage that matches your facility:

  • Standard Options: 220V / 1-Phase | 380V / 3-Phase | 110V / 1-Phase.

  • Cordless Freedom Option: 24V or 48V DC High-Cycle Battery Pack with charger. Provides full cordless operation for remote or temporary sites.

• Mobility System: The ‘Lift & Roll’ mechanism is 100% manual / mechanical, requiring no external power, ensuring it works anytime, anywhere.

6. Target Applications & Use Cases

• Multi-Door Warehouse Optimization: Dynamically allocate dock capacity to match daily shipping/receiving peaks.

• Temporary & Pop-Up Logistics Sites: Event logistics, seasonal overflow, construction site staging.

• Facilities with No Fixed Docks: Older buildings, retail distribution centers, manufacturing plants with yard-based loading.

• Maintenance & Contingency: Provide a backup dock during repair or maintenance of permanent levelers.

• Rental & Leasing Market: An ideal asset due to its ease of use, durability, and flexible power options.

7. Why HREI is a Category Leader
This product doesn’t just compete; it defines a new category by solving the core user pain point that has existed since the invention of the mobile ramp: the difficulty of moving it. By making movement trivial, it transforms the equipment from a static tool into a dynamic, productivity-enhancing asset. Combined with its industrial build quality, safety features, and power flexibility, the HREI Series represents the most significant advancement in portable loading technology in a generation.
