Hydraulic Dock Leveler 10T
Hydraulic Dock Leveler 10T

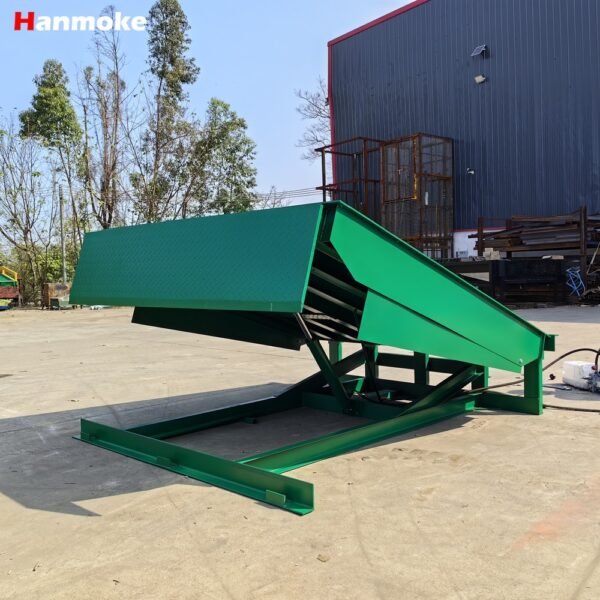

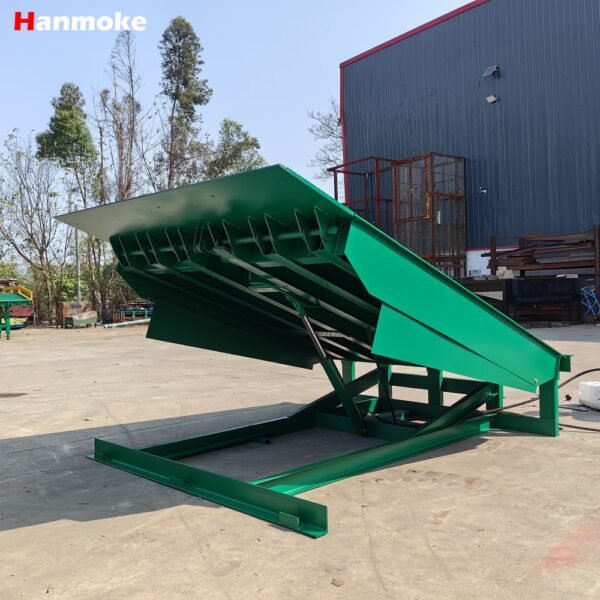

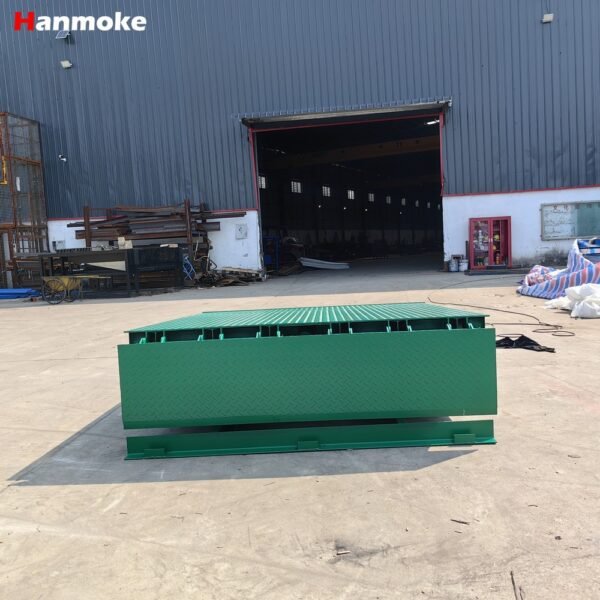

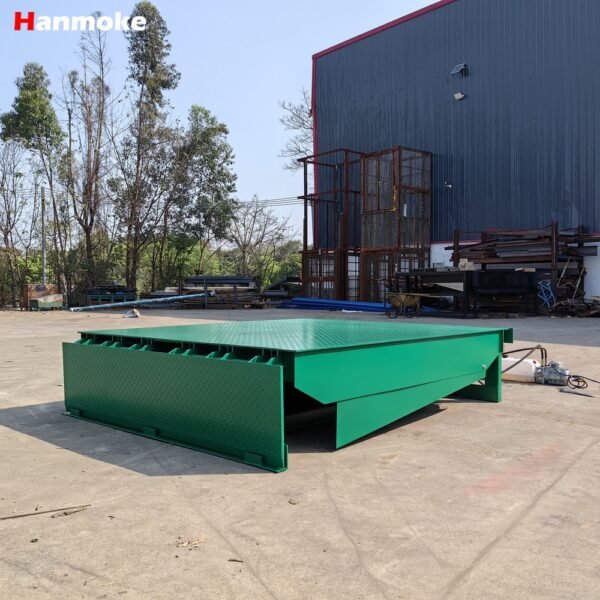

The HLSH-01 Hydraulic Dock Leveler is a professional pit-mounted electric loading dock leveler rated for 10 tons (22,000 lbs). With a 2,280 mm platform length and ±450 mm height adjustment range, it bridges the gap between warehouse dock and truck bed with smooth, push-button hydraulic operation.
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-01
Key Features
- Push-button electric hydraulic operation – no manual effort
- Japan NOK seals rated for 60,000+ cycles of reliable service
- Baosteel Q235B steel, sand-blasted and high-temp powder coated
- MIG welded frame – uniform, bubble-free welds throughout
- HANMOKE control panel and bumper rubbers included
- Maintenance safety support bar for safe servicing
- External control box mounting for flexible dock installation
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HLSH-10 | 1830×2280-10T |
| Rated Load | 10 Ton (22,000 lbs) |
| Platform Size | L2280 × W1830 × H490 mm |
| Pit Dimensions | L2280 × W1870 × Depth 500 mm |
| Height Adjustment | -300 mm / +450 mm |
| Adjustment Time | ≤ 30 seconds |
| Lip (Ramp) Length | 400 mm |
| Motor Power | 1.1 kW – 380V (optional 220V) |
| Hydraulic Pump | Bulff gear pump |
| Hydraulic Seals | Japan NOK – 60,000+ cycle rated |
| Deck Material | Baosteel Q235B checkered plate |
| Oil Capacity | 4.5 L (46# anti-wear oil) |
| Working Temp | -35°C ~ +65°C |
| Noise Level | ≤ 50 dB(A) |
| Equipment Weight | ≥ 780 kg |
| Service Life | 15+ years |
| Color | Green (customizable) |
Application Scenarios
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
10-ton capacity handles heavy industrial forklifts in production dock bays.
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Frequently Asked Questions
What is the rated load of the HLSH-01?
The HLSH-01 is rated at 10 tons (22,000 lbs) dynamic load, suitable for standard warehouse forklifts and loaded pallet movers.
What is the height adjustment range?
The HLSH-01 adjusts from -300 mm below dock level to +450 mm above, covering most standard truck bed heights in the field.
Is a pit required for installation?
Yes, this is a pit-mounted dock leveler. The pit dimensions required are L2280 × W1870 × D500 mm. Contact us if you need an exterior or edge-mount alternative.
Can the power supply be changed to 220V?
Yes. The default supply is 380V, but a 220V/50Hz configuration is available on request.
