Hydraulic Dock Leveler 10T
Hydraulic Dock Leveler 10T
The HLSH-02 Hydraulic Dock Leveler delivers reliable electric hydraulic operation for busy warehouse loading docks. Rated at 10 tons, it features a 2,280 mm platform and a ±450 mm adjustment range, adapting to varying truck bed heights with a single button press.
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-02
Key Features
- Single push-button hydraulic lift and lower
- 60,000+ cycle Japan NOK hydraulic seals
- Q235B Baosteel structural steel, MIG welded
- High-temp powder coat finish – corrosion resistant
- HANMOKE control system with safety bumpers
- Adjustable lip angle for smooth forklift transition
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HLSH-10 | 1830×2280-10T |
| Rated Load | 10 Ton (22,000 lbs) |
| Platform Size | L2280 × W1830 × H490 mm |
| Pit Dimensions | L2280 × W1870 × Depth 500 mm |
| Height Adjustment | -300 mm / +450 mm |
| Adjustment Time | ≤ 30 seconds |
| Lip Length | 400 mm |
| Motor Power | 1.1 kW – 380V |
| Hydraulic Pump | Bulff gear pump |
| Hydraulic Seals | Japan NOK |
| Deck Material | Baosteel Q235B checkered plate |
| Oil Capacity | 4.5 L |
| Working Temp | -35°C ~ +65°C |
| Noise | ≤ 50 dB(A) |
| Service Life | 15+ years |
Application Scenarios
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
10-ton capacity handles heavy industrial forklifts in production dock bays.
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Frequently Asked Questions
How long does height adjustment take?
Full range adjustment completes in ≤ 30 seconds from any position.
What steel grade is used?
The frame and deck use Baosteel Q235B checkered steel plate – a Chinese national standard structural steel with excellent weldability.
Is the control box included?

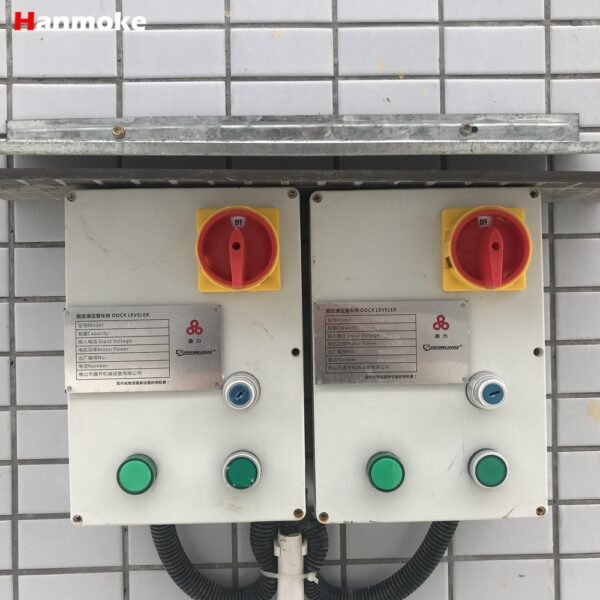

Yes. The HANMOKE control box is included and can be externally mounted to suit your dock layout.
What maintenance does it require?
Routine checks of hydraulic oil level and seal condition every 6 months. The maintenance safety bar allows safe hands-on inspection.
