Hydraulic Dock Leveler 10T
Hydraulic Dock Leveler 10T

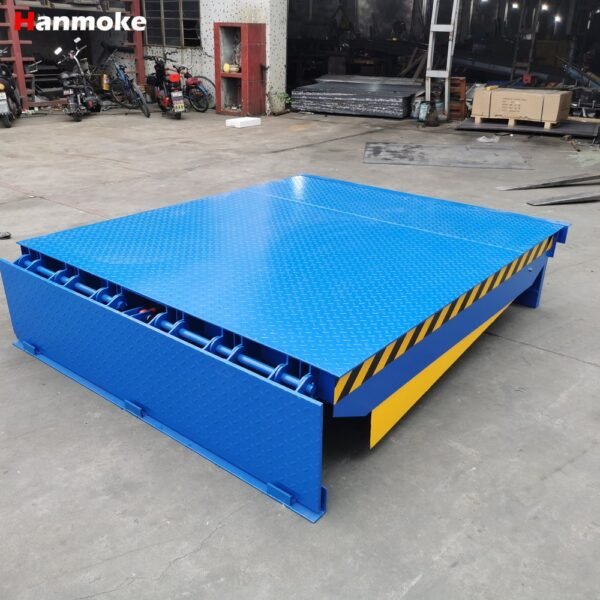

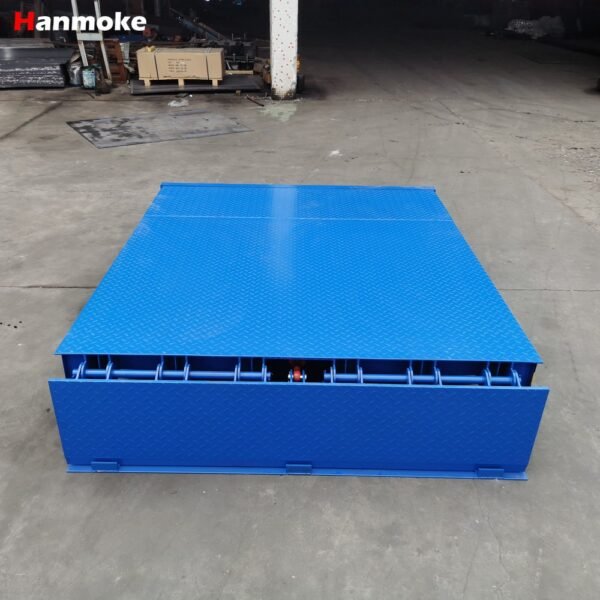

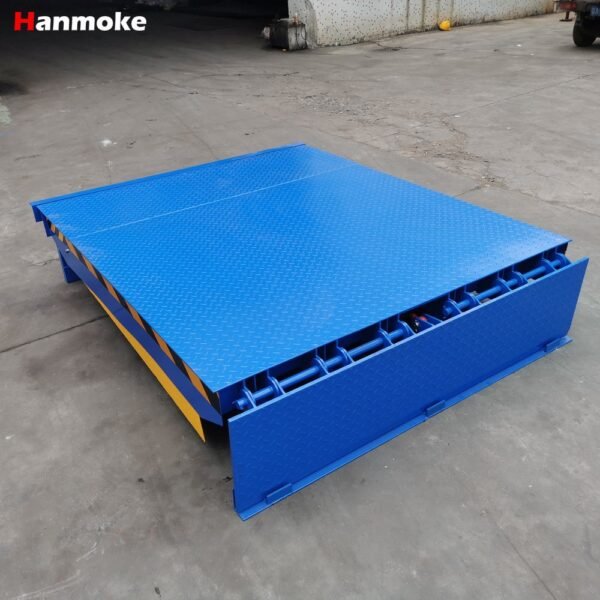

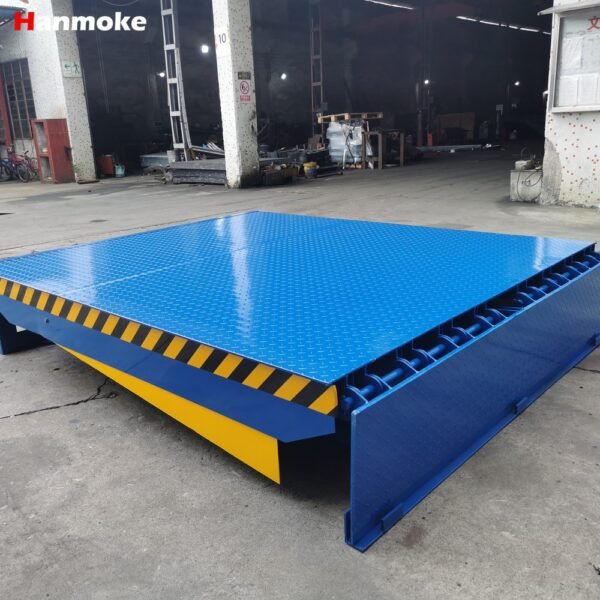

The HLSH-03 is a heavy-duty pit-type hydraulic dock leveler built for high-frequency warehouse operations. Its 2,280 mm platform and -300/+450 mm adjustment ensure seamless forklift access to virtually any standard truck, while the electric hydraulic drive keeps operations fast and hands-free.
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-03
Key Features
- 14# national standard I-beam main frame – exceptional rigidity
- Dual cylinders: independent main lift + lip extension
- Japan NOK seals – 60,000+ cycle service life
- Sand-blasted, four-coat high-temp baked paint finish
- Gas-protection MIG welding throughout – zero porosity
- HANMOKE electronic controls + safety maintenance bar
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HLSH-10 | 1830×2280-10T |
| Rated Load | 10 Ton (22,000 lbs) |
| Platform Size | L2280 × W1830 × H490 mm |
| Pit Dimensions | L2280 × W1870 × D500 mm |
| Height Adjust | -300 mm / +450 mm |
| Adjustment Time | ≤ 30 s |
| Lip Length | 400 mm |
| Main Cylinder | 73-63mm bore, 35mm rod |
| Lip Cylinder | 60-50mm bore, 28mm rod |
| Motor | Bulff 1.1kW, 380V |
| Seals | Japan NOK |
| Oil | 4.5L – 46# anti-wear |
| Frame | 14# I-beam, Q235B |
| Noise | ≤ 50 dB(A) |
| Service Life | 15+ years |
Application Scenarios
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
10-ton capacity handles heavy industrial forklifts in production dock bays.
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Frequently Asked Questions
What cylinder specs does the HLSH-03 use?
The main (platform) cylinder is 73-63mm bore with a 35mm rod. The lip (ramp) cylinder is 60-50mm bore with a 28mm rod.
What is the hydraulic oil specification?
46# anti-wear hydraulic oil, 4.5L capacity. Operating pressure is 8 MPa ± 1 MPa.
Can it handle heavy forklifts over 5 tons?
Yes. The 10-ton rated capacity and 14# I-beam frame comfortably handle 5-8 ton forklifts with full loads.
What surface finish is used?
Sand-blasting + 4-pass spray coat with high-temperature baking. The finish is highly rust-resistant with strong surface adhesion.
