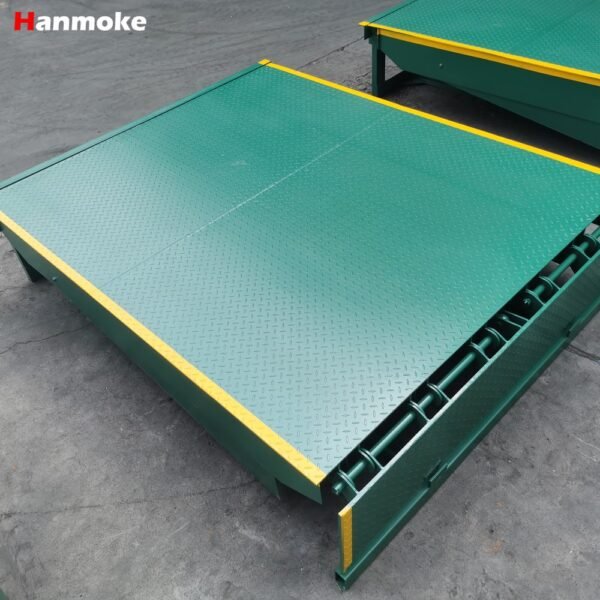

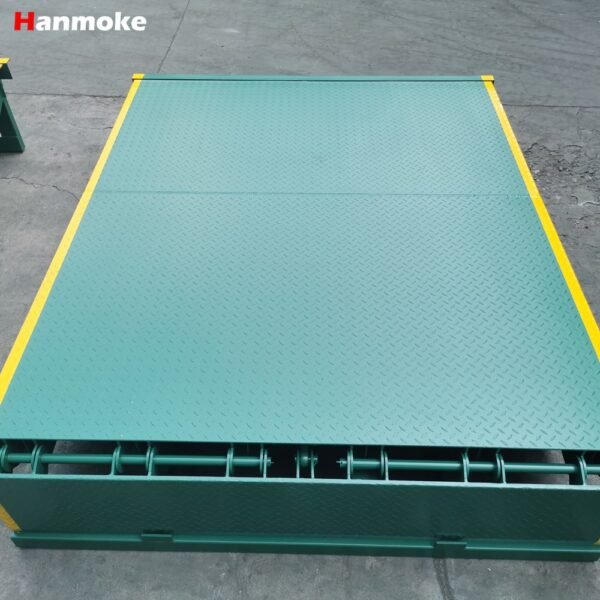

Hydraulic Dock Leveler 10T
The HLSH-04 electric hydraulic dock leveler is built for continuous-duty warehouse loading. Featuring a 10-ton rated capacity, HANMOKE electronic controls, and Japan NOK seals rated for 60,000+ cycles, it offers industry-leading reliability for high-throughput dock operations.
🕑 Quick Specs at a Glance
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-04
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-04
Key Features
- HANMOKE electronic control system – 4 included
- Adjustable lift speed: default 0.2 m/s, field-configurable
- FRF SAE100R2AT high-pressure hydraulic hose
- Japan NOK seals: world-class brand, 60,000+ cycles rated
- Q235B Baosteel steel, 4-pass high-temp baked coating
- 300×200×100 mm HANMOKE anti-collision bumpers
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HLSH-10 | 1830×2280-10T |
| Rated Load | 10 Ton (22,000 lbs) |
| Platform | L2280 × W1830 mm |
| Platform Height | 490 mm |
| Pit Size | L2280 × W1870 × D500 mm |
| Height Adjust | -300 mm / +450 mm |
| Adjust Speed | 0.2 m/s (adjustable) |
| Motor | 1.1 kW Bulff, 380V |
| Hydraulic Seals | Japan NOK |
| High-Pressure Hose | FRF SAE100R2AT |
| Oil Pressure | 8 MPa ± 1 MPa |
| Oil Capacity | 4.5 L |
| Working Temp | -35°C ~ +65°C |
| Noise | ≤ 50 dB(A) |
| Uptime | ≥ 99% |
Application Scenarios
🏢 Warehouse & Distribution
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
❄ Cold Storage & Freezer Docks
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
🏭 Manufacturing Plants
10-ton capacity handles heavy industrial forklifts in production dock bays.
10-ton capacity handles heavy industrial forklifts in production dock bays.
📦 Freight Terminals
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Frequently Asked Questions
What speed can the platform lift at?
Default lift speed is 0.2 m/s, adjustable to match your operational requirements.
What is the hydraulic hose specification?
FRF SAE100R2AT high-pressure hose is used throughout, rated for safe operation at 8 MPa working pressure.
What are the bumper specs?
HANMOKE anti-collision bumpers: 300×200×100 mm, belt-pressed manufacture.
Is the uptime guaranteed?
Design uptime is ≥ 99% with proper maintenance intervals.
