Dock Leveler
›
Hydraulic Dock Leveler 10T
Hydraulic Dock Leveler 10T
The HLSH-05 hydraulic dock leveler handles the demands of busy distribution centers and freight terminals. With a 22,000 lb (10-ton) capacity and smooth electric hydraulic operation, it provides fast, reliable height compensation for trucks and trailers with minimal operator effort.
Capacity: 22,000 lbs / 10T | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-05
Key Features
- 22,000 lb rated load – handles fully loaded pallet jacks and forklifts
- Auto stop at top and bottom limits – safe, reliable positioning
- Baosteel Q235B checkered plate – anti-slip in all weather conditions
- Full-length MIG welds – uniform penetration, no porosity
- Japan NOK seals with 60,000+ cycle design life

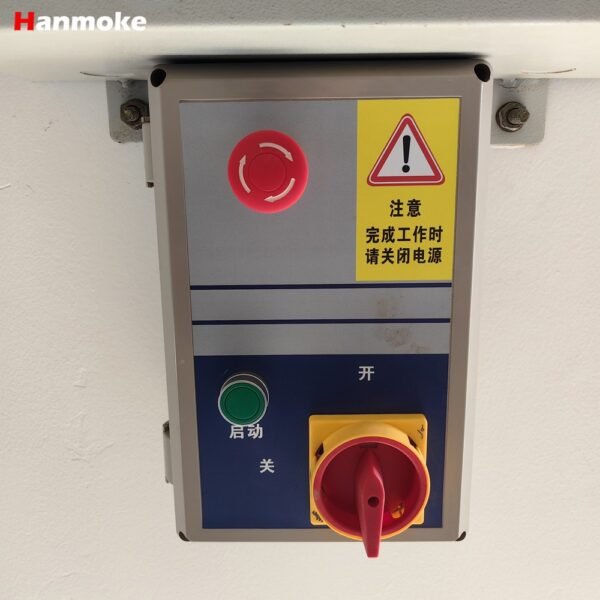

- HANMOKE control panel and dock bumpers included
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HLSH-10 | 1830×2280-10T |
| Rated Load | 22,000 lbs (10 Ton) |
| Platform | L2280 × W1830 × H490 mm |
| Pit Size | L2280 × W1870 × D500 mm |
| Height Adjust | -300 mm / +450 mm |
| Adjustment Time | ≤ 30 seconds |
| Lip Length | 400 mm |
| Motor | 1.1 kW Bulff, 380V |
| Seals | Japan NOK |
| Surface | Q235B Baosteel checkered plate |
| Welding | MIG gas shielded |
| Noise | ≤ 50 dB(A) |
| Service Life | 15+ years |
| Color | Green (custom available) |
Application Scenarios
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
10-ton capacity handles heavy industrial forklifts in production dock bays.
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Frequently Asked Questions
What is 10 tons in lbs?
10 metric tons equals approximately 22,046 lbs (22,000 lbs) – consistent with the HLSH-05 rated capacity.
Is the HLSH-05 suitable for refrigerated warehouses?
Yes. The hydraulic system is rated to -35°C working temperature, making it suitable for cold storage dock environments.
What welding process is used?
All welds use MIG gas-shielded welding for uniform, bubble-free joints and maximum structural integrity.
How is the color customized?
The standard finish is green. Custom RAL colors are available – contact us with your color code.
