Hydraulic Dock Leveler 10T
Hydraulic Dock Leveler 10T

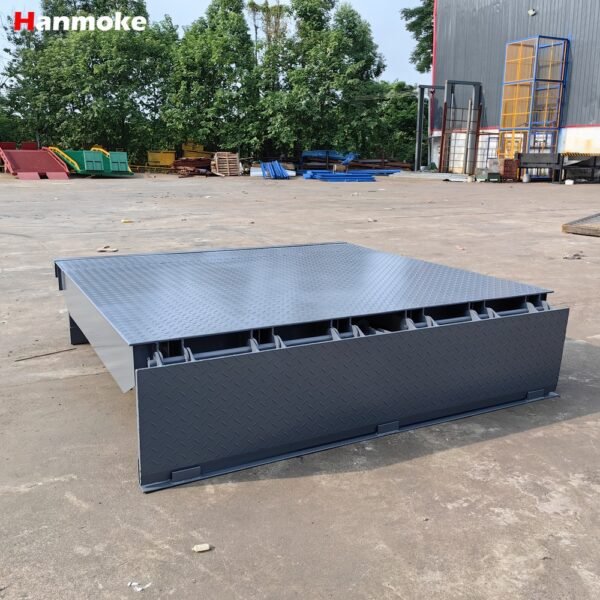

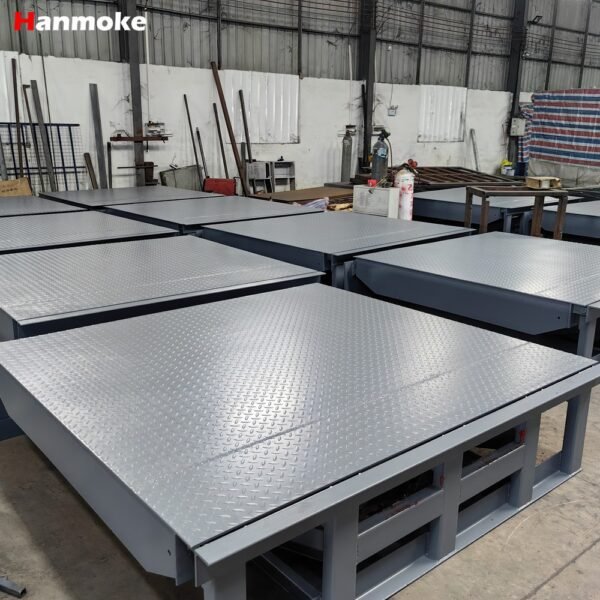

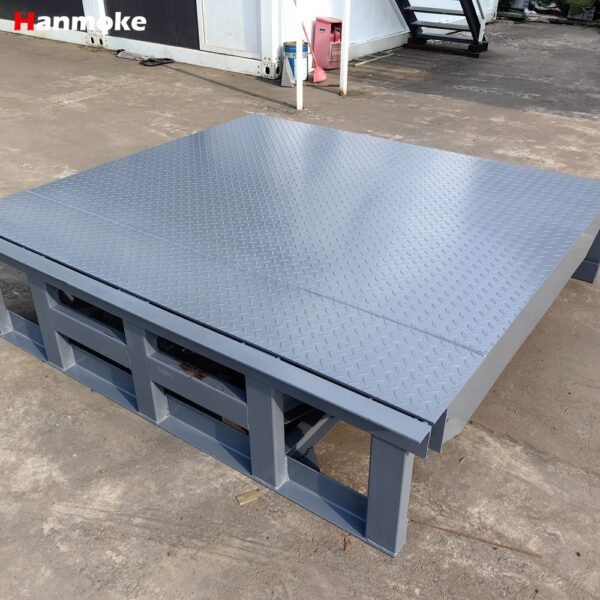

The HLSH-06 is a heavy-duty hydraulic dock leveler designed for industrial environments that demand long service life and minimal downtime. Weighing over 780 kg with a 14# I-beam frame, it delivers structural rigidity that handles continuous forklift traffic shift after shift.
🕑 Quick Specs at a Glance
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-06
Capacity: 10 Ton | Length: 2,280 mm | Width: 1,830 mm | Height Adjust: -300 / +450 mm | Model: HLSH-06
Key Features
- 780 kg+ structural weight – exceptional stability under dynamic loads
- 14# national standard I-beam backbone – industry-leading rigidity
- 6mm checkered plate deck – rated for multi-ton forklift wheels
- Diagonal level tolerance ≤ 3 mm for flat, safe crossing surface
- Japan NOK seals: 60,000+ cycles, no-compromise seal integrity
- Sand-blasted + 4-coat high-temp baked paint system
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HLSH-10 | 1830×2280-10T |
| Rated Load | 10 Ton (22,000 lbs) |
| Platform | L2280 × W1830 × H490 mm |
| Pit Size | L2280 × W1870 × D500 mm |
| Height Adjust | -300 mm / +450 mm |
| Motor | 1.1 kW Bulff, 380V |
| Main Frame | 14# national standard I-beam |
| Deck | Q235B Baosteel checkered plate, 6mm |
| Seals | Japan NOK – 60,000+ cycles |
| Oil Capacity | 4.5 L – 46# anti-wear |
| Equipment Weight | ≥ 780 kg |
| Working Temp | -35°C ~ +65°C |
| Diagonal Level Error | ≤ 3 mm |
| Noise | ≤ 50 dB(A) |
| Service Life | 15+ years |
Application Scenarios
🏢 Warehouse & Distribution
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
Bridge dock-to-truck height gaps with push-button precision for shift-long throughput.
❄ Cold Storage & Freezer Docks
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
Rated to -35°C — the hydraulic system performs in sub-zero dock environments.
🏭 Manufacturing Plants
10-ton capacity handles heavy industrial forklifts in production dock bays.
10-ton capacity handles heavy industrial forklifts in production dock bays.
📦 Freight Terminals
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Fast ≤ 30s adjustment time keeps freight terminal truck turnover efficient.
Frequently Asked Questions
How heavy is the HLSH-06?
The unit weighs ≥ 780 kg, providing excellent inherent stability without additional anchoring in most installations.
What is the diagonal level tolerance?
The deck maintains a diagonal level error of ≤ 3 mm, ensuring a flat, safe crossing surface for all vehicles.
What deck thickness is used?
The main deck plate is 6 mm thick Q235B checkered steel from Baosteel group.
What hydraulic oil does it take?
46# anti-wear hydraulic oil (46# pressure-resistant oil). Tank capacity is 4.5 liters.
