Telescopic Hydraulic Dock Leveler
›
Telescopic Hydraulic Dock Leveler 10T
Telescopic Hydraulic Dock Leveler 10T

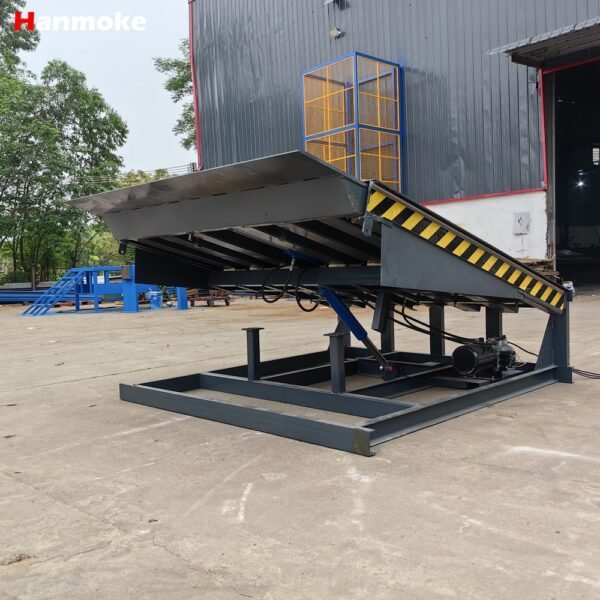

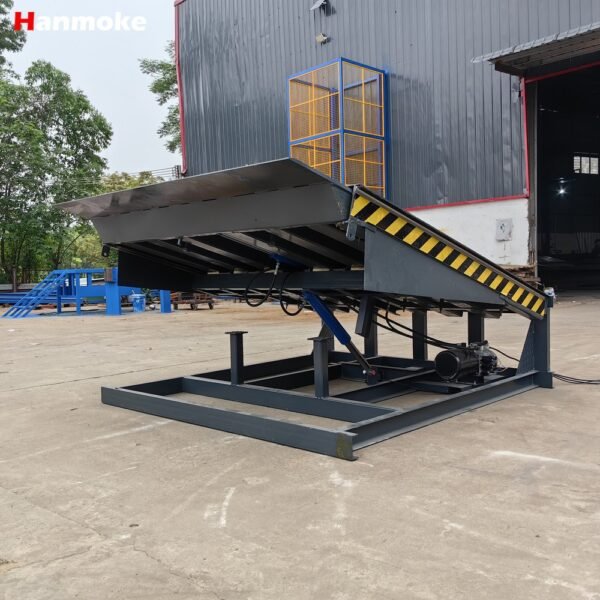

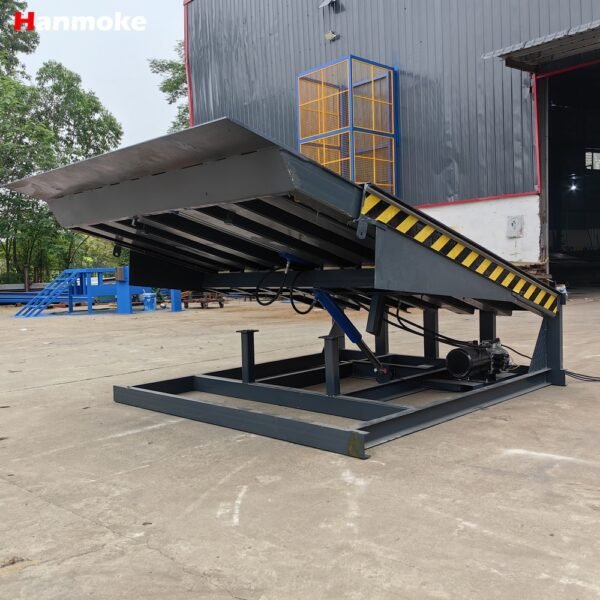

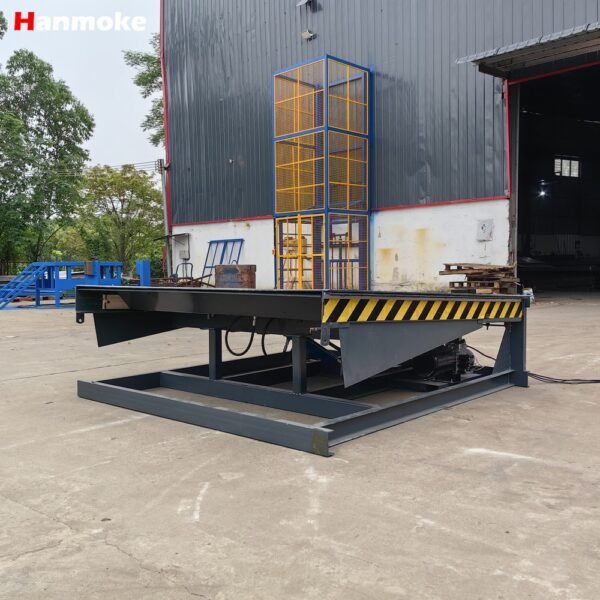

The THDS Telescopic Hydraulic Dock Leveler features an innovative automatic extending lip that telescopes out 1,000 mm to bridge varying gaps between dock and truck – no manual adjustment needed. Rated at 10T static / 8T dynamic with a 200,000-cycle design life, it’s engineered for the most demanding logistics environments.
Capacity: 10T static / 8T dynamic | Length: 2,100 mm | Width: 1,970 mm | Height Adjust: -290 / +300 mm | Model: THDS
Key Features
- Telescopic extending lip – auto-extends 1,000 mm to bridge dock-to-truck gap
- Auto-retract side safety guards – operator protection during operation
- 24V low-voltage control box – safe and compliant
- 200,000 cycle design life – 3× the standard dock leveler specification
- Japan NOK seals for leakage-free high-cycle performance
- Q235B steel with 150°C high-temperature baked coating
- 1-year full machine warranty
Technical Specifications
| Parameter | Value |
|---|---|
| Model | THDS Telescopic |
| Static Load | 10 Ton |
| Dynamic Load | 8 Ton |
| Platform Size | W1970 × L2100 × H590 mm |
| Pit Size | W2000 × L2100 × H600 mm |
| Drive System | Electric hydraulic |
| Control Voltage | 24V low-voltage |
| Height Adjust | +300 mm / -290 mm |
| Adjust Time | < 30 seconds |
| Lip Extension | 1,000 mm (400×16 + 600×8 mm) |
| Lip Thickness | 16 mm |
| Deck Thickness | 8 mm |
| Motor | 1.5 kW, 380V |
| Pump | Ks hydraulic pump station |
| Seals | Japan NOK |
| Pressure | 8 MPa ± 1 MPa |
| Oil Capacity | 6 L – 32# anti-wear |
| Working Temp | -20°C ~ +50°C |
| Rated Cycles | ≥ 200,000 |
| Noise | < 50 dB(A) |
| Warranty | 1 year full machine |
Application Scenarios
Auto-extending lip maximizes throughput — no manual gap bridging between trucks.
Sealed lip design minimizes air infiltration between freezer dock and trailer.
Handles 8T dynamic load from heavy industrial forklifts in production environments.
Fast < 30s adjustment time keeps cross-dock truck turnaround times minimal.
Frequently Asked Questions
How far does the lip extend?
The telescopic lip extends 1,000 mm automatically – comprising a 400mm outer section and 600mm inner section.
What is the difference between static and dynamic load?
Static load (10T) is the maximum load when the leveler is stationary. Dynamic load (8T) applies when a forklift is moving across the platform.
What is the rated cycle count?
The THDS is rated for ≥ 200,000 operational cycles, more than 3 times the standard 60,000-cycle rating of conventional dock levelers.
Why use 24V control voltage?
24V low-voltage control reduces electrical safety risk at the dock face, meeting modern industrial safety standards.
